Bulldozers Parts in Missouri - Bulldozers, also referred to as dozers, are a type of tractor equipped with a dozer blade. Crawler tractors run on continuous track as opposed to relying on wheels, although, wheeled versions are also on the market. The dozer blade is a large metal plate fixed to the front of the bulldozer. Large volumes can be moved with the dozer blade including dirt, gravel and snow on a variety of landscapes. Big, metal teeth known as “the ripper” are located on the back of the bulldozer, used for breaking up tough, compressed items.
Specifics
The tracks of a typical bulldozer give it superior traction and maneuvering capabilities on rough, uneven or unstable ground and the specialized transmission system allows the bulldozer to operate with increased tractive force. On unstable ground, the width of the tracks distribute the vehicle’s weight, preventing the heavy machine from sinking. Swamp tracks refer to tracks that have increased widths, suitable for specific applications. Dozers are popular within mining applications, land clearing and construction jobs that need strong and stable equipment to transport materials within a variety of environments.
Bulldozers operating on a wheeled system usually have four wheels, moved along by a 4-wheel-drive system and a hydraulic, articulated steering system. Mounted directly in front of the articulation joint, the bulldozer blade uses a hydraulic system for operating instead of a mechanical setup.

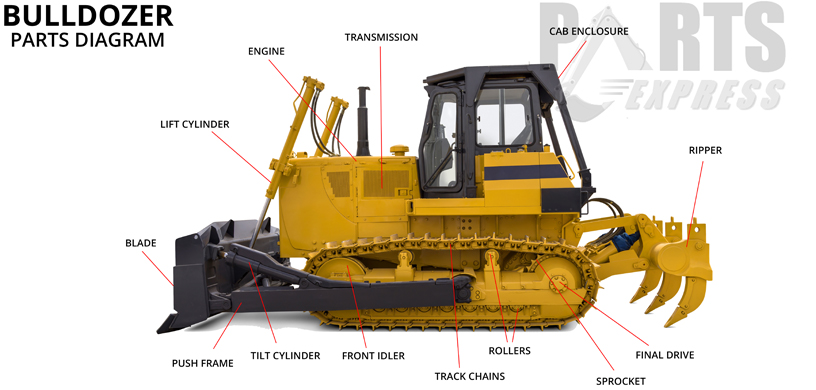

The bulldozer is easily recognized from other types of industrial equipment thanks to its main components, the ripper and the dozer blade.
The Dozer Blade
The huge metal plate that is located at the front end of the bulldozer is called the dozer blade. The purpose of the dozer blade is to push heavy items and awkward materials. Snow, gravel, sand, dirt and garbage are some of the most popular items that bulldozers push around. Three typical kinds of dozer blade options are available including the semi-U blade, the universal blade and the straight blade.
The universal or U blade features large wings on the sides of the tall, curved blade to transport more material. The straight blade, or S blade, is short, has no lateral curve and no side wings and is also used for fine earth grading. The SU or semi-U blade combines a shorter blade with slight side wings and less curve compared to the U blade. Generally, the semi-U blade is used to push large rock piles or boulders into place.
Dozer blades commonly attach horizontally or at an angle to the tractor. Dozer blade angles are capable of being adjusted via tilt cylinders. The dozer blade is sometimes sharpened to allow for cutting of objects, such as stumps or roots. An angledozer features a blade that is pushed ahead on one side to enable items to be cleared out of the path of the bulldozer. It is common to see an angledozer in action on highways and roads during winter snow removal.
A variety of bulldozers are equipped with a bull blade. A bull blade is a reinforced centre section of the bulldozer. The bull blade enables the dozer to push a scraper to move large portions of earth.
Military vehicles also utilize dozer blades. Numerous military vehicles can attach a dozer blade for strategic operations including battle tanks, artillery tractors and combat engineering vehicles. When mounted to a battle tank, the dozer blade allows the tank to push obstacles and mines and to dig shelters or create combat positions. It can help establish a protective barrier against obstacles, artillery and explosive items, making it a valuable machine for military applications.
The Dozer Ripper
The shank or dozer ripper is the substantial tool situated on the bulldozers’ back with long teeth. Dozer rippers come in a large, single shank design or with groups of two or more shanks. The giant ripper design or large single shank is commonly used for large and compact applications. Multi-shank rippers refer to multi-shank designs.
The tip of the shank is a detachable, metal piece known as the boot. This enables the boot to be easily replaced when it becomes broken or worn down instead of having to completely change the shank.
Solid objects including compact earth, concrete or rock can be broken up into tinier pieces thanks to the dozer ripper, creating material that is easier to transport by the dozer. This combination enables projects to be completed faster.
In agricultural applications, the dozer ripper is used to break up the ground and rocks for planting and plowing. Locations across Italy and New Zealand rely on dozer rippers to access nutrient-rich ancient lava flows that wouldn’t be farmable otherwise due to their dense nature. The ripper loosens the top lava rock layer to initiate farming applications.
Bulldozer Adaptations
Over time, the bulldozer has been adapted to allow for uses that were not possible with its original design.
For example, the original bulldozer was too large for work in small areas, such as mines. This limitation lead to the creation of a smaller bulldozer design which allowed for maneuvering in tight spaces. Smaller, light bulldozer models are commonly called calfdozers.
Snowier locations including ski hills rely on a lighter bulldozer version for snow removal and winter slope preparation.
The loader tractor is another popular adaptation. The loader tractor consists of replacing the dozer blade with a sizeable bucket and using hydraulic arms for raising and lowering. This adapted bulldozer model is referred to as a track loader, trackscavator or Drott to load gravel, earth and rocks into dump trucks.
A lesser-known bulldozer attachment is called the stump buster. A stump buster is attached at the back of the bulldozer. The horizontally protruding single spike is used to split up tree stumps into smaller more manageable pieces for removal. These attachments are often used for land clearing applications. A brush-rake blade is also commonly used with the bulldozer in these situations.
Even with numerous bulldozer adaptations on the market, the original form of the machine is still popular in road carving, ground leveling, earthmoving and deforestation projects. Heavy bulldozers are primarily used to level terrain in preparation for construction. The construction is completed mostly by smaller bulldozers and loader tractors.
Origins
James Cummings, a farmer, teamed up with J. Earl McLeod, a draftsman, to create the first bulldozer design in 1923. The dozer blade was the initial design they created and was built to be attached to an existing tractor in order to plow fields. The first bulldozer was built soon after and the prototype is can be seen in Morrowville, Kansas’ city park. McLeod and Cummings filed a US patent on the bulldozer attachment later that year and it was granted in 1925. It was normal for tractors to run on a track system at this time. It was this initial tractor version, complete with extreme maneuverability that helped contribute to the World War I armored tank.
By 1929, home-made or custom-manufactured attachments began to appear on wheeled and tracked tractors alike. During the mid-‘30s, the bulldozer attachment started to gain popularity. Prior to 1940, hydraulic cylinders were added and by the ‘50s, bulldozer popularity began to grow with the term bulldozer referring to the whole machine.
Bulldozers evolved to become stronger and bigger as their demand grew for small and large construction jobs. Numerous companies including Caterpillar and John Deer began making wheeled and tracked bulldozer lines. Electric motors and hydraulic cylinders replaced initial cable winch mechanisms and automatic transmissions replaced manual transmission systems. More effective and accurate control systems were introduced thanks to these upgrades. Upgrades with GPS technology have been added to enhance bulldozing tasks with improved grade control.
Bulldozers began as a tractor attachment for farming applications and have grown to become one of the most useful pieces of equipment for construction, civil engineering, building and maintenance applications, mining operations and military use.
